Outdoor double side front service waterproof cabinet

Short Description:

1.Cabinet Size :Customized cabinet size

2.Module Size: 320*160mm 192*192mm 256*128mm

3.Cabinet color: black, blue,gray

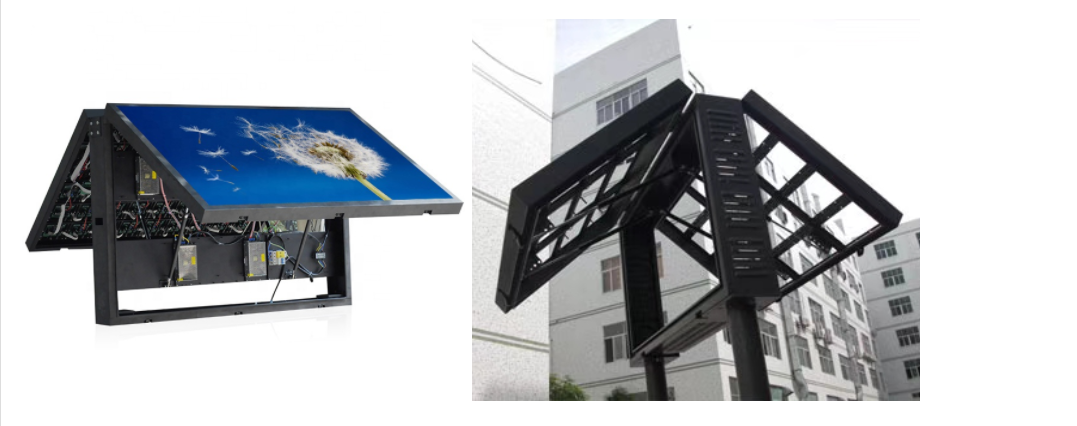

4.Installation way :fixed on the wall,it suit for situation where there is no maintenance space on the back of the cabinet

6.Use Environment: outdoor

7.Accessory:power plate, received plate


Product Detail

Product Tags

Product information

Place of Origin Shenzhen,Guangdong, China
Model size According to customer’s requirements
Brand Name RUICHEN
Tube Chip Color Full color
Display Function Video
Usage outdoor
Pixels P10mm/P 5mm/P 6.67mm/P8mm
Screen Dimension Custom Made
Module size 320*160 mm,192*192mm,256*128mm
Color black, blue, gray,white
Certificate ISO9001,CE
Application Advertising



Name

LED display waterproof cabinet

Material

Iron

Aluminium

Cabinet size

0.6

0.6

0.6

0.6

Plate thickness

1.0mm

1.2mm

1.0mm

1.2mm

1.5mm

1.8mm

1.5mm

1.8mm

Standard accessory

Power supply plate,received card plate,position pin,connector plate

Specification

Easy installation front access P6 front maintenance outdoor led display for Christmas Decoration
Type SMD3535
Composition 1R1G1B
Scan method 8S
Resolution 32 x 32dots (W x H)
Pixel pitch 6mm
Module size 192*192 mm
Module quantity 4×4
Resolution 128x 128(W x H)
Cabinet size 768*768mm
Panel Type and Material Iron or aluminum
Best viewing distance 6-80m
Maximum power <1200W /m2
Viewing angle 160°/140°
Brightness 6500cd/m2
Pixel density 27777dot/m2
Control system Synchronous  System
Lifespan 100,000 hours
Frame frequency 60Hz
Installation Hanging/Fixed with support bracket
Certification CE, ROSH,FCC

3c3cfde1f57c9e5742a1473a6eb66f5 3cd69a352426a4ef872404e38a848bb 8f63c6f37b94868f00cedebe3c19e31 cab569f4eea85d8eaa4f05eb85e2ab8 cfb5c7c361e00ec259f8a7f742d8b53 d3fb28b13bfc7484b162a030854e827

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

sea

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.

air

3.By express: TNT/UPS/DHL/FEDEX,It is more convenient and quick,It is mainly used for transporting goods with small volume and light weight.

interExpress

Shipping port:shenzhen /guangzhou/tianjin port.

Shipping term:EXW term、FOB term、CIF term

Payment types: T/T transfer,Weston union
