Outdoor pole light fixed installation cabinet

Short Description:

1.Cabinet Size :Customized cabinet size

2.Module Size: 320*160mm 192*192mm 256*128mm

3.Cabinet color: black, blue,gray,white

4.Installation way :fixed on the pole

6.Use Environment/IP level: outdoor /IP65

7.Standard accessory:power plate, received plate

Send email to us

Product Detail

Product Tags

Product information

Place of Origin	Shenzhen,Guangdong, China
Model size	Any size can be customized
Brand Name	RUICHEN
Tube Chip Color	Full color
Display Function	Video
Usage	outdoor
Pixels	P10mm/P 5mm/P6.67mm/P8mm/P6mm/P4mm
Screen Dimension	Custom Made
Module size	320160 mm,192192mm,256*128mm
Color	black, blue, gray,white
Certificate	ISO9001,CE
Application	Advertising

Name	LED display single side pole light cabinet
Material	Iron				Aluminium
Cabinet size	＞0.6㎡		＜0.6㎡		＞0.6㎡		＜0.6㎡
Plate thickness	1.0mm	1.2mm	1.0mm	1.2mm	1.5mm	1.8mm	1.5mm	1.8mm
Standard accessory	Power supply plate,received card plate

Specification

ITEM	HD Outdoor Light Pole Screen
Product model	SJ-P10
Pixel pitch	10mm
Physical density	10000dots/m²
LED Package	SMD3535 (3in1)
Module size	320mm*160mm
Modules resolution	32dots×16dots
Modules weight	0.4kg
Driving method	1/2scan/1/4scan
Interface definition	HUB-16P
Cabinet size	960mm1600mm160mm
Cabinets weight	55kg
Cabinets resolution	96dots×160dots
Equilibrium brightness	>6500cd/m²
Power consumption	Max: ≤995W/m², Average: ≤490W/m²
Refresh rate	≥3840Hz (ICN2055 Driving IC)
Viewing angle Level	H: ≥160°Optional, V: ≥120°Optional
Viewing distance	10-120m
Temperature	Working : -25℃~60℃, Storage: -35℃~80℃
Humidity	10%~95%
Working voltage	Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V
Maintenance method	Front/Back service
Protection grade	Front: IP65, Back: IP65
Lifetime	100000 Hours

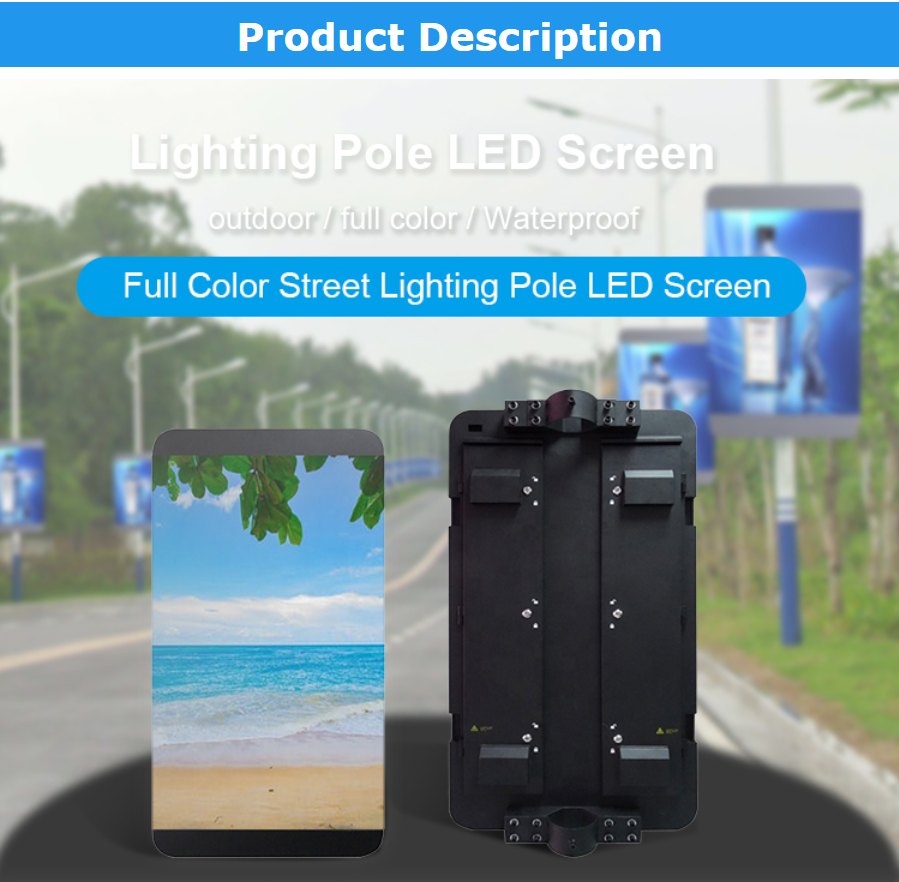

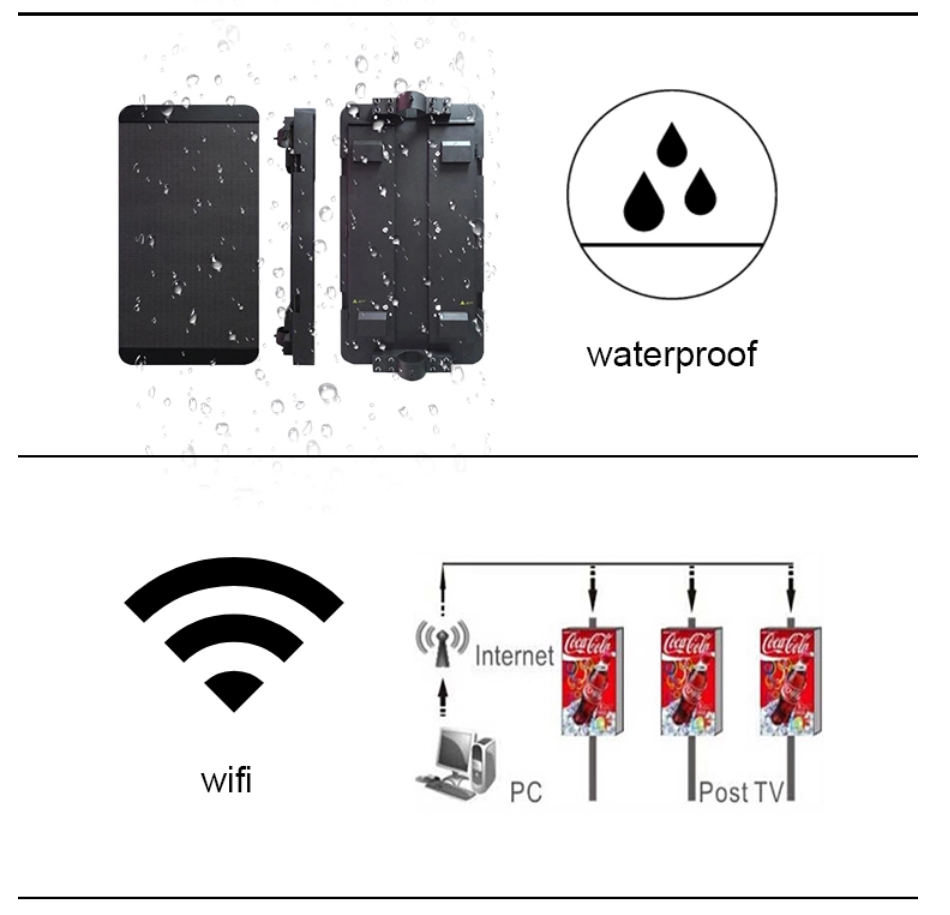

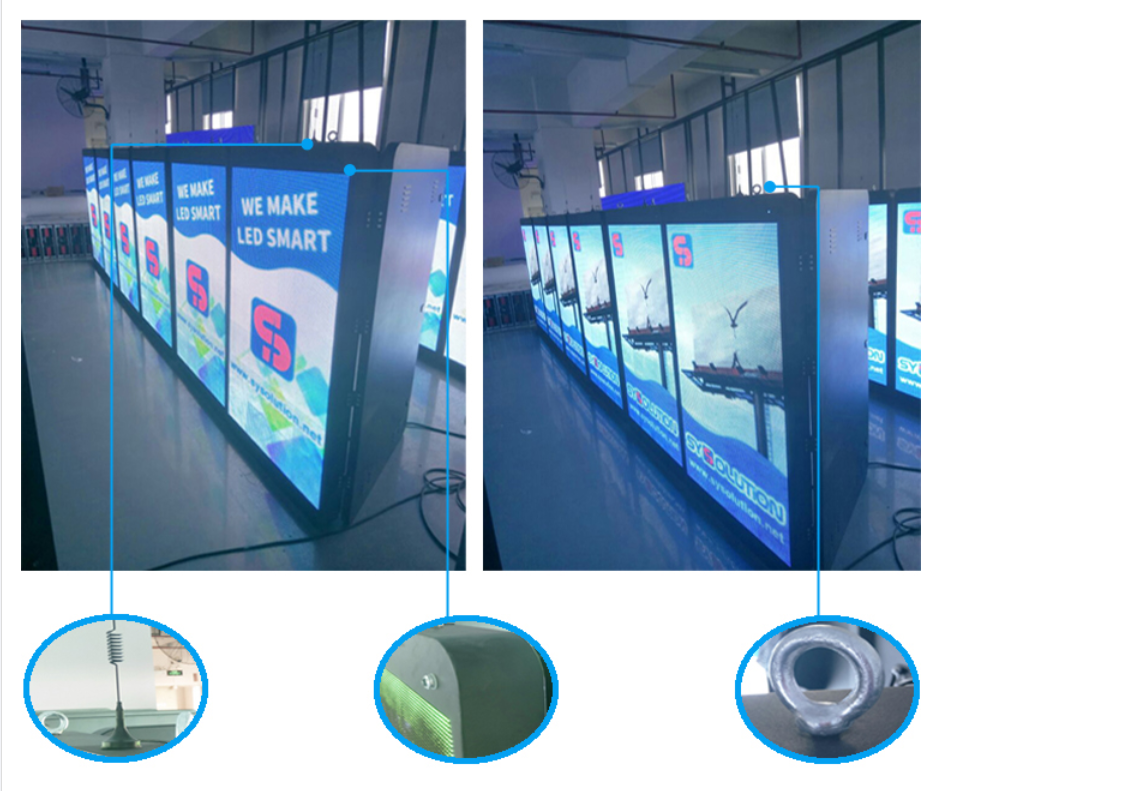

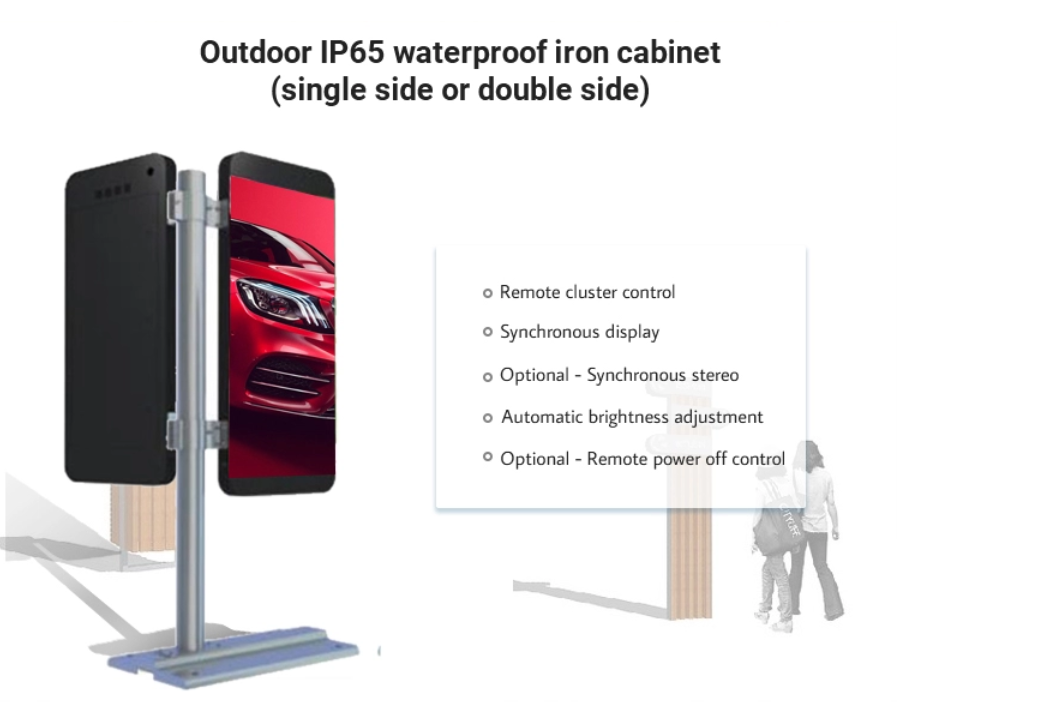

1a0d8dbe71bb5f6cc9f7111fef1da12 5985d54309e3e29652b1fef16c35923 b71d96d8246ba70a62ae7d793e41e35 bf61d1beb5aae71c43d376637949b5a

Customer’s Review

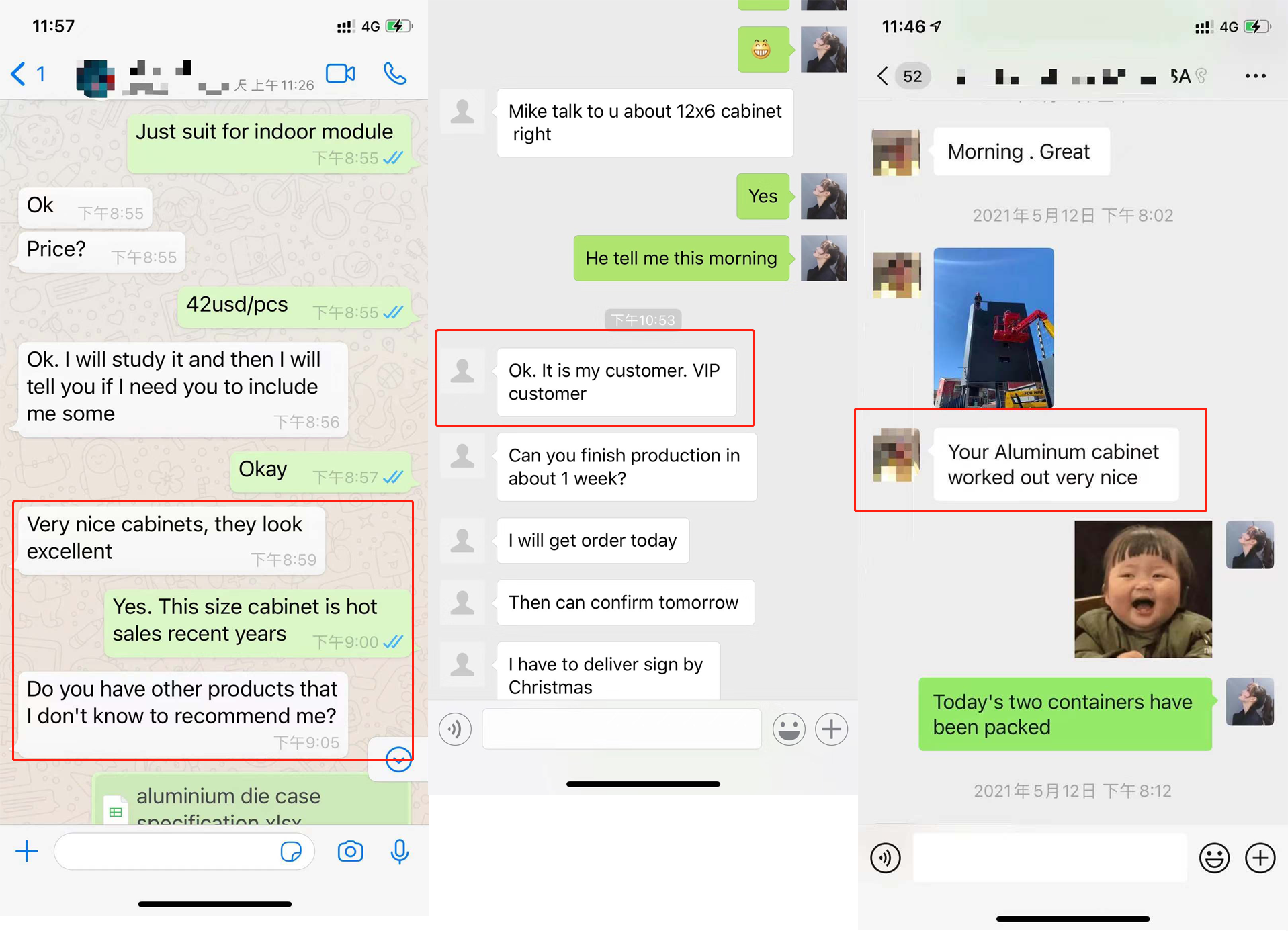

微信图片_20210906144714

Packaging & Delivery

There are mainly three types of packing way:

20210817144141

Delivery way

1. By sea:Maritime transportation is a way of transporting goods between ports in different countries and regions by sea lanes, and it is the most important mode of transportation in international trade.

2. By air:Air transport has won a considerable market with its fast, safe, punctual and super-high efficiency, greatly shortening the delivery time, and greatly promoting the logistics supply chain to speed up the capital turnover and circulation.
